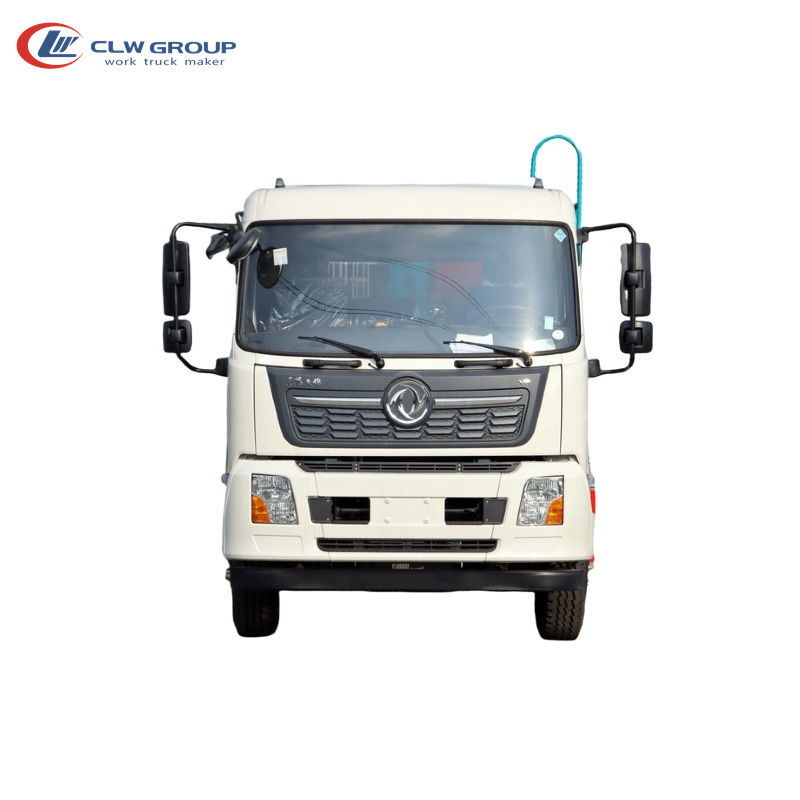

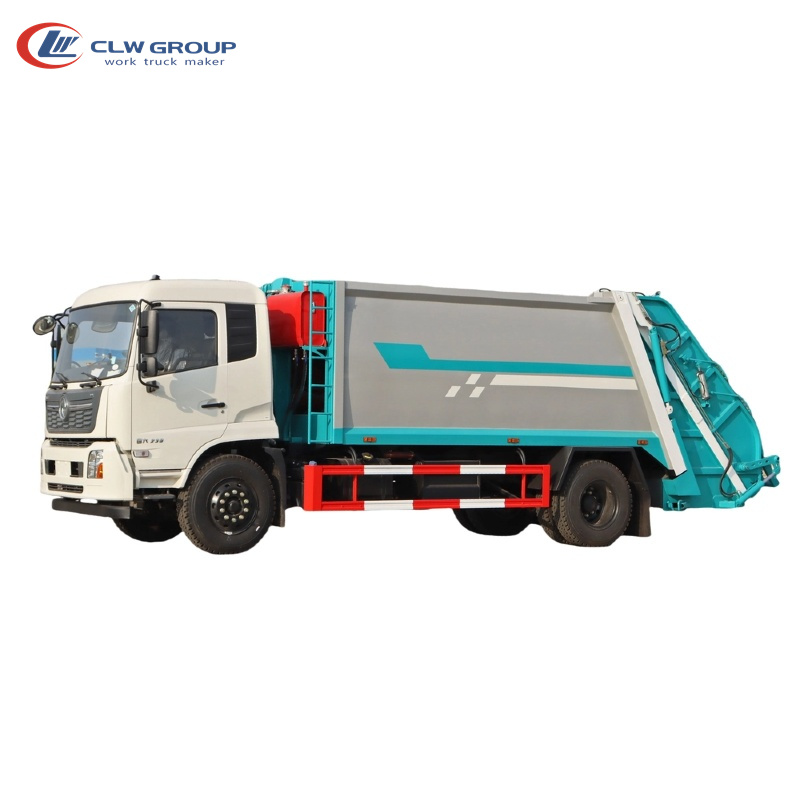

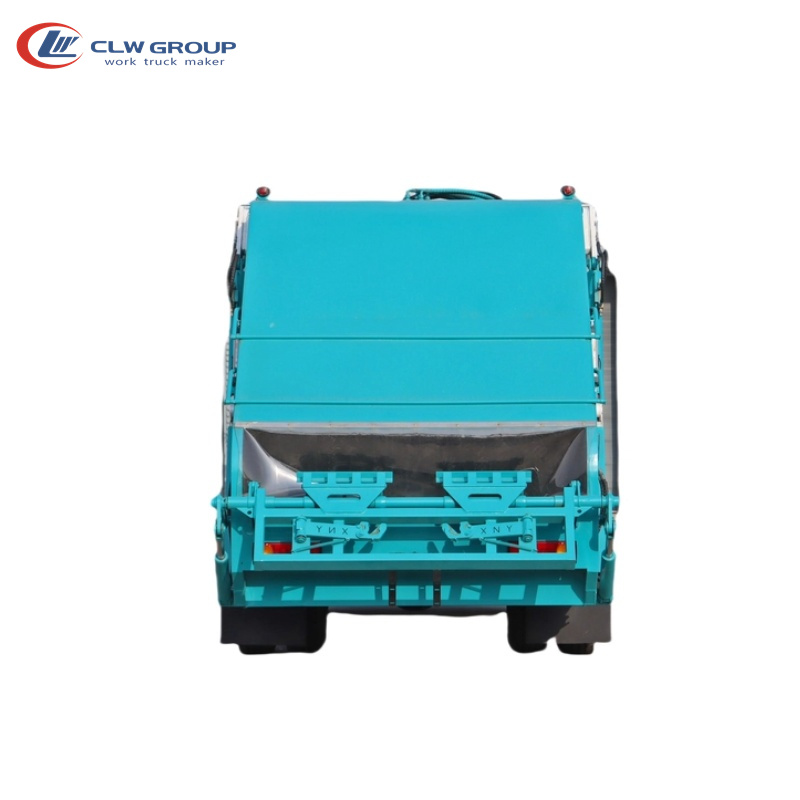

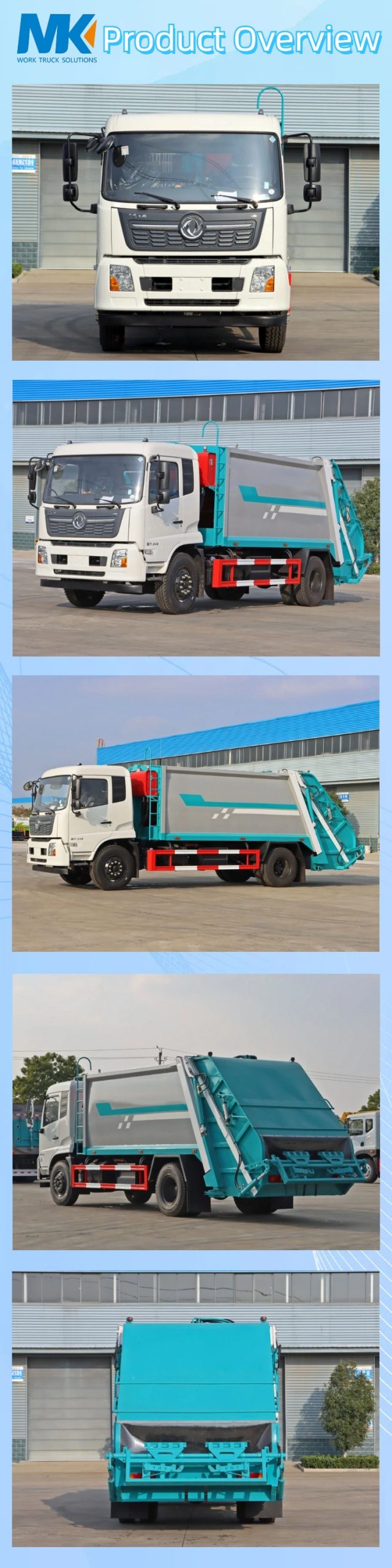

china brand dongfeng 14cubic compressed garbage truck compactor waste collection truck on sale
The company is capable of manufacturing compressed garbage trucks with various specifications, including 3.5m³, 6m³, 8m³, 10m³, 12m³, 14 m³, 17m³, 18m³, and 20m³ 40m³ with chassis for different brands.
An optional hydraulic bin turning mechanism is available, which can accommodate plastic bins of 120 L, 240 L, and 660 L as well as metal bins of 350 L.
For further information or customization，Contact us as follows
configuration：garbage container，load and unload system，etc.
type：4*2 6*4
chassis：sinotruck、dongfeng、foton、
garbage body capacity：3m³-18m³
New upgraded cab, high-end atmosphere More intimate and comfortable. Electric glass,Driving Recorder, Airbag Seat, Air Conditioning, Multifunction Steering Wheel, MP5 Multimedia, LED Daytime Running Lights.
Main Specification
Total Mass(kg)
18000kg
Overall Dimension (L*W*H/mm)
9250*2550*3250
Rated Loading capacity(kg)
7305,6805
Chassis
Chassis Brand
Dongfeng
Chassis Model
DFH1180EX8
Drive type
4*2
Wheelbase(mm)
3800,3950,4200,4500,4700,5000,5300,5800,5600,5100
Numble of axles
2
tire
10.00R20 18PR,275/80R22.5 18PR
Braking System
air brake
Cab capacity
2,3
Max Speed(km/h)
89km/h
Engine
Engine manufacturer
Cummins Engine
Engine Model
D6.7NS6B260
horse power（kw/hp）
191/260
Displacement(ml)
6700
Emission standard
Euro Ⅱ/Ⅲ/Ⅳ/Ⅴ
Fuel Type
Diesel
Transmission
Automatic
Garbage Tank
Volume of compartment
14m³
Thickness（mm）
8mm
Material
High Strength Steel Wear Plate T700
Function
Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket
