Description

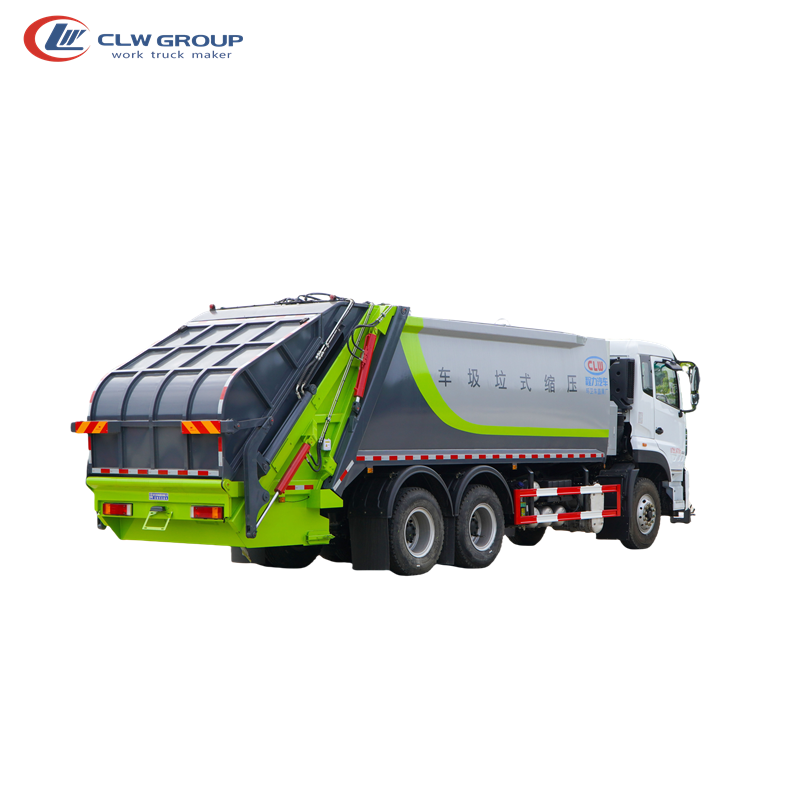

| product name | CLW 6*4 refeuse comapctor compressed garbage truck 22m³ waste collection truck | |
| cab | Power Glass, CarLog, Airbag Seats, Air Conditioning, Multifunction Steering Wheel, MP5 Multimedia, LED Daytime Running Lights. | |
| chassis | Chassis brand | CLW |
| Drive type | 6*4 | |
| Number of Axles | 3 | |
| Wheelbase(mm) | 3800+1300,4350+1300,3800+1350,4350+1350,4550+1350,
5350+1350,5800+1350,4200+1350 |
|
| total mass（kg） | 24700 | |
| tire | 10.00-20 18PR,11.00-20 16PR,11.00R20 16PR,12R22.5 16,12R22.5 14,12R22.5 18,12R22.5 16PR,12R22.5 14PR,12R22.5 18PR,11.00R20 18PR | |
| Braking System | air brake | |
| Cab capacity | 2，3 | |
| Max Speed (km/h) | 90 | |
| Overall dimension (L*W*H/mm) | 10220,10400×2550×3450 | |
| engine | Emission standard | Euro Ⅱ/Ⅲ/Ⅳ/Ⅴ |
| Fuel type | diesel | |
| horse power（kw/hp） | 220/300 | |
| Displacement(ml) | 7470 | |
| model | WP7.300E61 | |
| Engine manufacturer | Weichai Engine | |
| Transmission | 10 speed | |
| working performance parameter | Effective volume of the box/m³:22m³ loading cycle time：18s |
|
